WIZnet VAR Support
How to become WIZnet VAR and make VAR product!

VAR is Value Added Reseller.
If you want to make your own Wiznet VAR with W7500, then WIZnet will give every technical related datum and supports for free for you.(Contact : Gunn@wiznet.co.kr)

The below steps are our VAR making process with W7500 MCU chip.
You can make your own WIZnet VAR with free technical supports and WIZnet free datum.

The below steps show helps you can get at each stage.

Step 1 : Conception
Good Idea!

step1_2

One can make W7500 Open VAR, because W7500 is optimized MCU on IoT era.
One can make Serial to Ethernet or other VAR using W7500.
W7500 is optimized at Ethernet functions and have many merits like unattackable against DDOS.

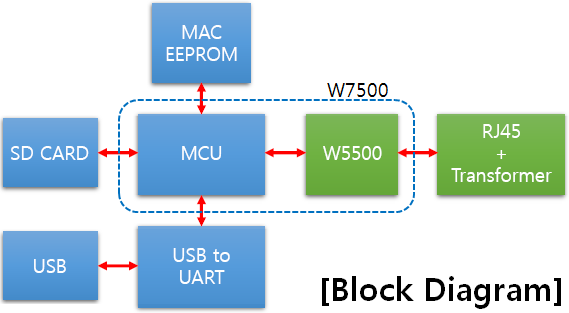

[WIZwiki-7500 Block diagram]

Parts & Costs

step1_1

If you decide what to make, then you should think about parts required and total cost.

Step 2 : Hardware Design
Hardware Schematic

step2If you make mbed-supporting VAR, then your schematic should follow the inteface between W7500 and NXP11U35 chip like WIZwiki Platform.
Then HDK(Hardware Development Kit) is completed.
WIZwiki Platform was designed with Altium tool.

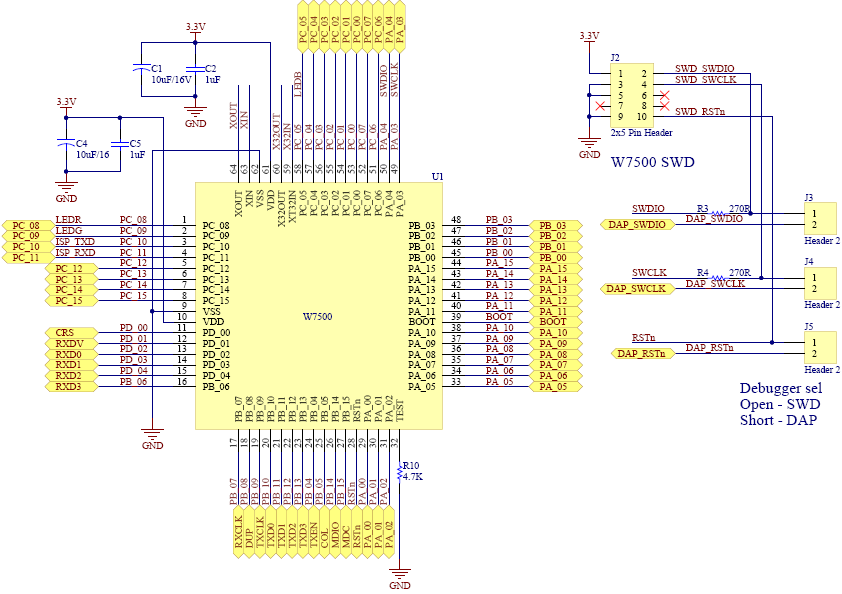

[WIZwiki-W7500 Schematic] (Altium Designer)

Step 3 : ArtWork
ArtWork

step3After Schematic, you should do ArtWork.
[WIZwiki-W7500 ArtWork] (Altium Designer)

Gerber File

After ArtWork, you can generate Gerber File using tool.(Altium or others)

If you need WIZwiki Platform Gerber files, then please contact at Wiznetian@wiznet.co.kr.
Step 4 : Implement
Soldering

With Gerber File, you can make PCB board.
I think you can be soldered.

Hardware Debugging

If soldering the PCB and some problems, then you should debug the Hardware.

Complete

After every problems settled, then Hardware works are finished.

Pin MAP

step4

You should make Pin MAP.
The right picture is WIZwiki Platform PinMAP

Step 5 : Software Design
Firmware Development

Firmware work is also easy.
Every code is ready already.
You just copy the WIZwiki SDK and modify the pinname.h file only.

Step 6 : Pull Request
Asking ARM Permit

To support ARM mbed askings, you should do pull request work.
– first of all, singletest.py run

[Detail]http://mbed.org/ecosystem/mbed-enabled/

Step 7 : Test
test code

– bin file.
– test method.
For WIZwiki platform, you can reference the below URL.
[Detail]http://wizwiki.net/wiki/doku.php?id=products:wizwiki_w7500:start_getting_started:check_wizwiki-w7500

Problem Shooting

If you found some problems, then settle those down.

Step 8 : Manual work
Datasheet

Make the datasheet document using datum collected meantime like Schematic, Pin MAP.
[WIZwiki-W7500 Library]
[WIZwiki-W7500 Documents]

http://wizwiki.net/wiki/doku.php?id=products:wizwiki_w7500:start

Step 9 : Production
3rd Party Production

When producing first 100 or 200 products, you can use 3rd party professional company.

Step 10 : Selling/ Marketing
e-Sale

You should find the profession distribution or e-sale to sell your new VAR products.
WIZnet have Gloval e-Sale, so we can help you.

[WIZnet USA E-Sale shop]
[WIZnet Europe E-Sale shop]
[WIZnet Korea E-Sale shop]

Joint Marketing

If your VAR is good, then we can do the joint marketing for your VAR product.

If you make the W7500 VAR and want to do joint marketing, then please contact at Wiznetian@wiznet.co.kr.
